IP видеорекордер TP-Link VIGI NVR4016H, 16 канала, H.265+/H.265/H.264+/H.264, 4x SATA (до 16TB), 1x USB 3.0, 2x USB 2.0, 2x RJ-45, 2x HDMI, 1x VGA

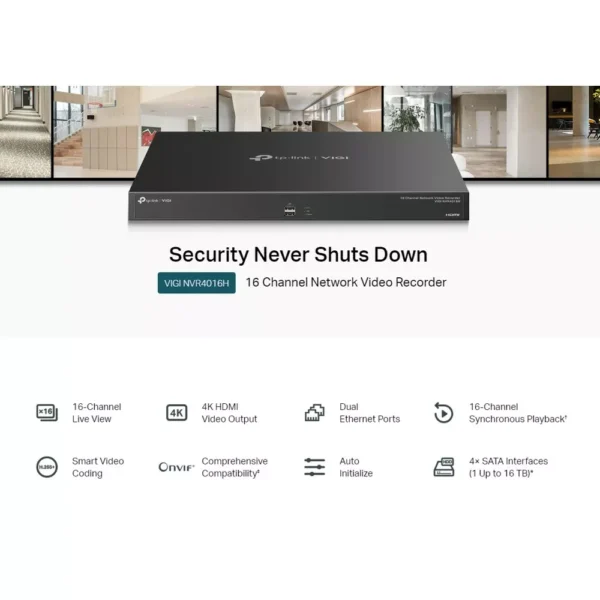

TP-Link VIGI NVR4016H

VIGI 16 Channel Network Video Recorder

16-Channel Live View and 4K HDMI Video Output
Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080P (25fps) Decoding Capability
16-Channel Synchronous Playback†
320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
4× SATA Interfaces and 1 Up to 16 TB*
H.265+ Compression Technology
2 HDMI and 1 VGA Video Output
Remote Monitoring

Category Specification
Video and Audio
IP Video Input 16-Channel
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 320 Mbps
HDMI Output Resolution 2 Channels • HDMI1: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz • HDMI2: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution 1 Channel: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output Mode • HDMI1/HDMI2 Independent Output • HDMI1/VGA Independent Output Note: HDMI2 and VGA cannot operate simultaneously. HDMI2 takes precedence.
Multi-View Display 1, 4, 6, 8, 9, 16
Decoding
Audio Compression G.711A / G.711U / G.726
Video Compression H.265+ / H.265 / H.264+ / H.264
Record Resolution 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Synchronous Playback 16-Channel
Capability • 25fps: 10-ch@3MP, 16-ch@1080P • 30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP
Record Management
Record Mode Manual, Scheduling, Motion Detection Recording
Playback Mode Instant, Regular, Tag, Event Playback
Backup Mode Regular Backup, Video Clip Backup
Playback Function Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Network
Protocols UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF Profile S, CGI
External Interface
Network Interface 2× RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
USB Interface 2× Front USB 2.0, 1× Rear USB 3.0
Audio Interface 1-ch RCA Input, 1-ch RCA Output
Alarm In/Out 16 / 4
Serial Interface 1× RS232
Power 1× AC Jack
Reset Button 1
Speaker N/A
eSATA 1
HDMI 2
VGA 1
Hard Disk
SATA 4 SATA Interfaces
Capacity Up to 16 TB per HDD
Alarm
General Alarm Motion Detection, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering/Exiting, Loitering, Object Abandoned/Removed, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame Note: Requires camera.
Anomaly Alarm Video Loss, Offline/IP Conflict, Disk Exception, Login Exception, Fan Exception Note: Requires camera.
Alarm Linkage Recording, White Light Alarm, Buzzer, Log, Audible Alarm Note: Requires camera.
General
Storage Temperature -40 – 70 °C
Storage Humidity 10%–90% RH (Non-Condensing)
Working Temperature -10 – 55 °C
Working Humidity 10%–90% RH (Non-Condensing)
Dimensions (W×D×H) 440 × 330 × 44 mm (17.32 × 12.99 × 1.73 in)
Net Weight 4.0 kg
Gross Weight 5.0 kg
Power Supply 100–240 VAC, 50/60Hz, 1.5A
Max. Power Consumption 5.5 W (Without Disk), 45 W (With Disk)
Certifications CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF
Package Contents NVR, Mouse, Installation Guide, Power Cord, HDD Power/Data Cables, Terminal Blocks, Mounting Brackets, Screws, Rubber Feet
