IP камера TP-Link VIGI C540-4G, куполна камера, 4Mpix(2560×1440@30fps), 4mm обектив, H.265+/H.265/H.264+//H.264, IR осветеност (до 30 метра), за външен монтаж, IP66 защита, PoE, 4G, RJ-45, микрофон, високоговорител, MicroSD слот до 512GB

VIGI C540-4G

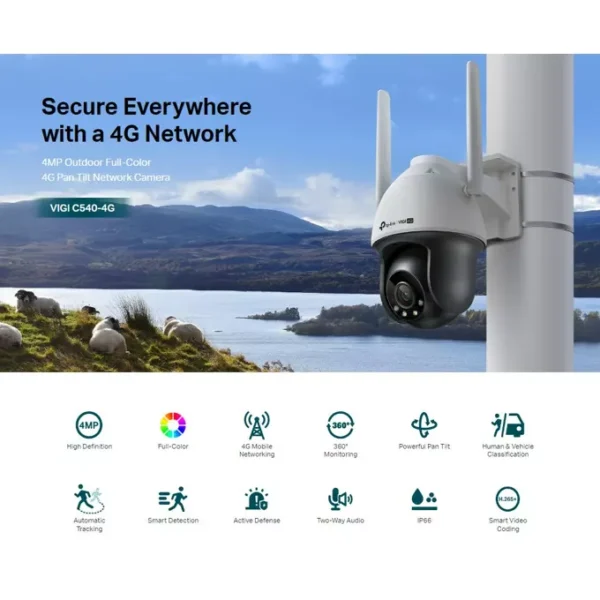

VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
360° Monitoring: Cover every corner and eliminate blind spots.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
IP66 Waterproof: Reliable IP66 for stable outdoor performance.
Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
Onboard Storage: Support on-board storage up to 512 GB (SD card slot).*

Clarity and Colors, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.

Network Anywhere You Need It

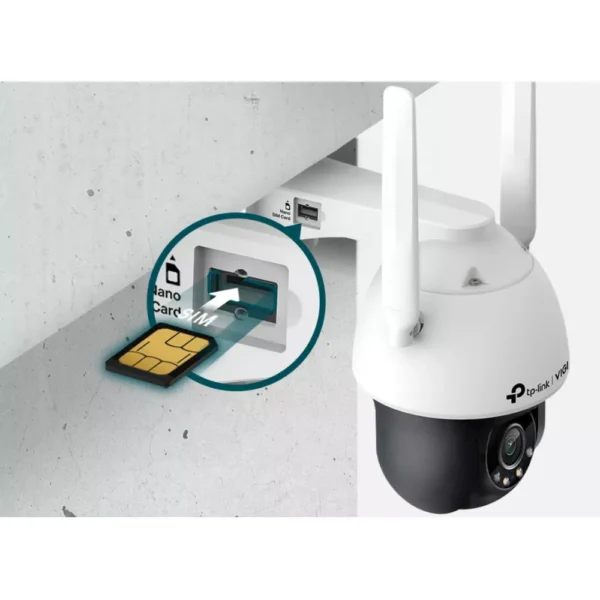

No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.

Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what’s happening and take action without wasting time on irrelevant footage.

Спецификации:

Камера
Светлочувствителен сензор 1/3.06” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
Lens Mount M12*0.5
DORI Distance Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
PTZ
Pan/tilt Range Pan: 0° to 348°, Tilt: 0° to 120°
Pan/tilt Speed • Pan Speed:
Configurable from 8° to 44°/s; Preset Speed: 44°/s

• Tilt Speed:
Configurable from 8° to 44°/s, Preset Speed 44°/s

Manual Control Speed Configurable from 8° to 35°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off Memory Yes;
Auto restore to previous PT and lens status after power failure
Park Action Yes;
Preset; Patrol Scan
3D Positioning Yes
Angle Adjustment (Manual)
Range • Pan: 0° to 348°
• Tilt: 0° to 120°
ILLUMINATOR
IR LED • Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED • Quantity: 2
• Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2560 X 1440
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
640×480, 352×288, 320×240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Видео компресия • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 3 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
АУДИО
Аудио комуникация Two-Way Audio
Аудио вход Yes
Аудио изход Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
МРЕЖА
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 2 Main Streams & 2 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Защита Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
Standard LTE-TDD/LTE-FDD/WCDMA
SIM Type Nano SIM
Category 4
Frequency • LTE-FDD: B 1/3/5/7/8/20/28
• LTE-TDD: B 38/40/41
• WCDMA: B 1/5/8
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА
Smart Event • Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
Basic Event • Motion Detection
• Video Tampering Detection
• Exception (Illegal Login)
Alarm Linkage • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
Linkage Method N/A
Output Notification Message Push
ИНТЕРФЕЙСИ
Мрежов интерфейс 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Nano-SIM Card Slot Yes
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
ОБЩИ ХАРАКТЕРИСТИКИ
Околна температура при работа -30–60 °C
Storage Temperature -40–60 °C
Околна влажност при работа 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Съдържание на пакета • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
Material Plastic
Net Weight 0.69 Kg
Gross Weight 1.16 Kg
Power Supply 12V DC/1A, 5.5mm Coaxial Power Plug
Antenna • Quantity: 2

• Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna

• Gain:
Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz

Protection IP66
Product Dimensions (L x W x H) 120 × 182 × 201 mm (excluding antennas)
Certifications CE, RCM, BSMI, RoHS, NCC
